| Place of Origin: | Shanghai |
|---|---|
| Brand Name: | BERRY |
| Certification: | CE |
| Model Number: | NB-219C |
| Minimum Order Quantity: | 3000PCS |
| Price: | Negotiation |
| Packaging Details: | 335*190*100mm |
| Delivery Time: | 45 DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 10000/Month |
| Brand: | BERRY | Product Name: | Compressor Nebulizer |
|---|---|---|---|
| Color: | White | Feature: | Integrated Handle |
| Certificate: | CE | Function: | Respiratory Diseases |
| Size: | 280*180*88mm | Weight: | 1.4Kg |
| Pump Life: | 2000 Hours | Operating Mode: | Continuous Use |
| Noise: | ≤60dB(A) | ||
| High Light: | Respiratory Diseases mini mesh nebulizer,handheld mesh nebulizer,Cable case mini mesh nebulizer |
||

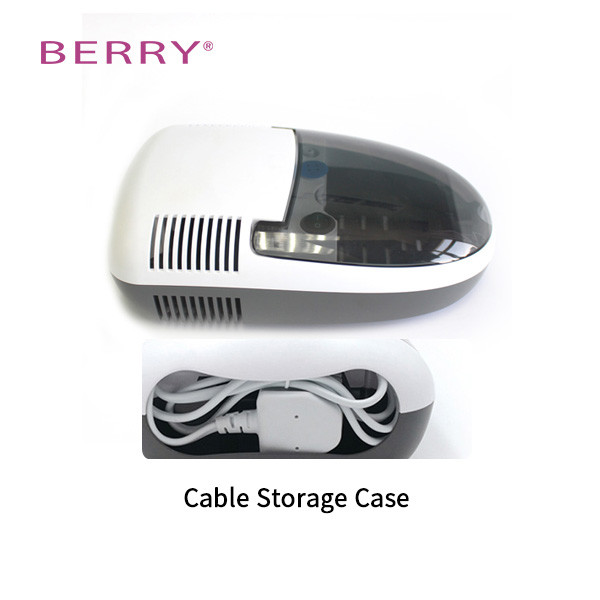

New digital timer function storage compartment and cable case
Compressor Mesh Nebulizer
Working Principle:
Apply the venturi effect principle. The main engine uses compressed air generated by oil-free single cylinder piston pump as the driving source to generate and transmit fog. When the compressed air produced by the compressor is ejected from the spray port, the liquid is sucked up by the negative pressure generated between the spray port and the connecting pipe. Suction liquid impact to the top of the cup core, into a very fine mist to the outside of the spray.
This equipment sprayed liquid medication to fog panel by compressing air,and form tiny particles,which flow into the throat
through imbibing tube.It adopts oil-free-high-efficiency valve with no need for daily lubrication and it is with low noise,tiny
particles.
| Product name: Compressor Nebulizer |
| Feature: Integrated handle |
| Function: Respiratory Diseases |
| Extreme Pressure: approx. 2.7 bar |
| Nebulizing Rate: approx. 0.35 ml/min |
| Size: 280mm x180mm x 88mm |
► Extreme Pressure: approx. 2.7 bar
► Free Flow: approx. 12.5 L/min
► Nebulizing Rate: approx. 0.35 ml/min

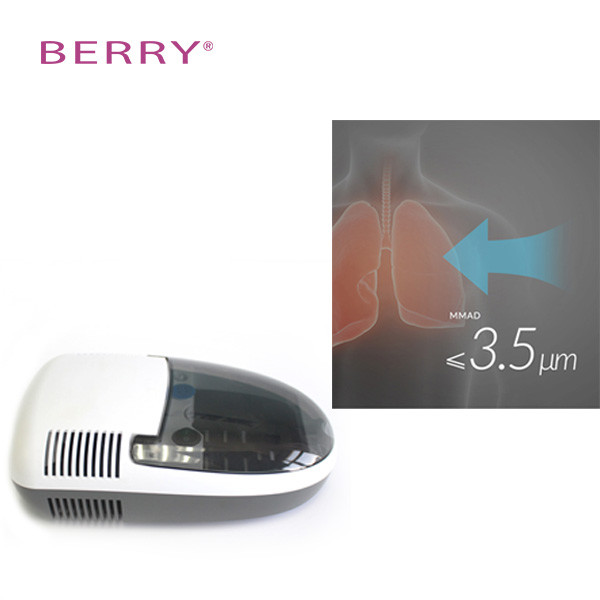

► Particle Size(MMAD): approx. 3.4 μm
► Fine Particle Fraction(FPD): approx. 70%
► Noise Level: approx. 55 dB
► Max capacity of nebulizer kit: 10 mL
► Operating mode: Continuous Use
► Pump life: 2000 hours
► Weight: 1.4 Kg
► Size: 280mm x180mm x 88mm
► CE, FDA 510k approved
