| Place of Origin: | Shanghai |
|---|---|
| Brand Name: | BERRY |
| Model Number: | PM6750 |
| Minimum Order Quantity: | 1 PCS |
| Price: | Negotiation |
| Packaging Details: | 240*165*50 |
| Delivery Time: | 15 days |
| Payment Terms: | T/T |
| Supply Ability: | 10000/Month |
| Type: | Patient Monitor,Medical Monitor | Instrument Classification: | Class II |
|---|---|---|---|
| Product Name: | Patient Monitor,patient Movement Waterproof Sensor Monitor Standing Up Reminder | Warranty: | 1 Year |
| Application: | Adult,ECG,TEMP,Dual IBP | Color: | White |
| Function: | ECG,TEMP,Supporting Wire Or Wireless Network.,Multi-Parameter Patient Monitor | Name: | ICU Multi-parameter Patient Monitor,patient Monitor Price |
| Size: | 240mm X 165mm X 50mm | Gross Weight: | 6.3kg |
| Feature: | Wireless/Remote Control,Emgency,6 Paprameter,Providing Better Care Quality&eliminating Fall-injury Related Costs. | Weight: | Excluding Accessories |
| Ecg: | 3/5-Lead,Muti-lead ECG Waveforms Display In Phase | Voltage: | 50/60HZ,AC100-240V,Power≤60W |
| Material: | ABS,Plastic | ||
| High Light: | ICU multi para patient monitor,Hospitals ambulance patient monitor,multi para patient monitor ECG |
||

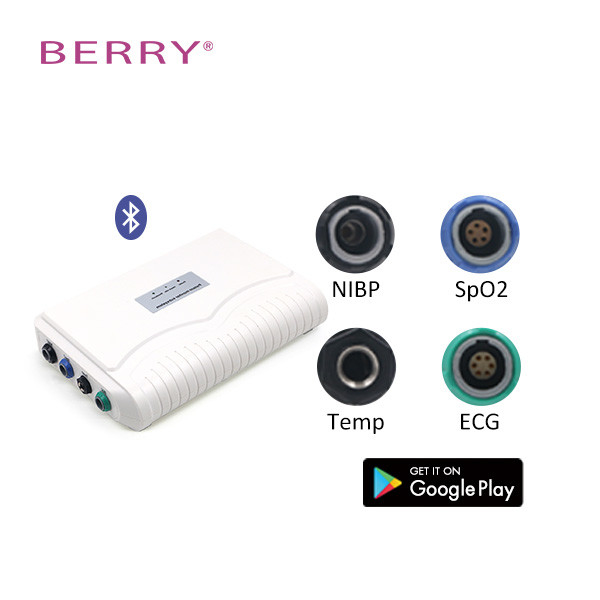

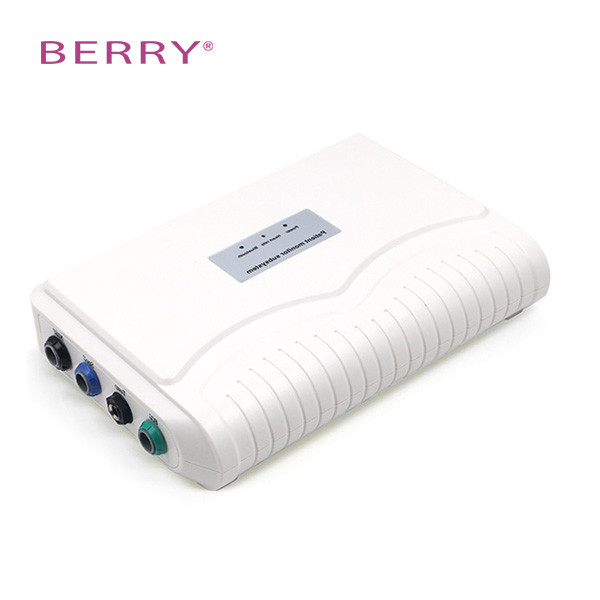

Patient Monitor PM6750 for ICU, hospitals,healthcare community, home and outdoor use
Specification
| ECG | |
|
Number of Leads
|
3 or 5 leads
|
|
Gain Slection
|
250, 500, 1000, 2000
|
| Frequency Response | Diagnostic: 0.05 to 130HZ Monitor: 0.5 to 40 HZ Surgery: 1 - 20HZ |
|
NIBP
|
|
|
Technique
|
Oscillometric during in flation
|
| Range | Adult/P ediatric : 40-240mmHg Neonat e : 40-150mmHg |
| Measurment cycle |
<40 sec, typical
|
| Max Allowable Cuff Presure | Adult:300mmHg Pediatric :240 mmHg Neonate :150 mmHg |
| Resolution | 1mmHg |
Our leading products list :
1) SpO2 Sensor and Disposable SpO2 Sensor
2) SpO2 Extension Cable and spo2 adapter cable
3) ECG Cable ,EKG cable , Holter Cable and disposable ECG cable
4) ECG Electrode
5) Electrosurgical pencil and Electrosurgical pad
6) IBP Cable and IBP transducer
7) Temperature Probe and disposable Temperature Probe
8) NIBP Cuff and NIBP hose(NIBP tube)
9) Fetal transducer
10) disposable CTG belt and reusable CTG belt
11) EEG Cable and EEG hat (EEG cap)
12) original Ultrasound probe, compatible ultrasound probe, repair ultrasound probe
13) Needle Guide for Ultrasound probe
14) Pulse Oximeter
| Lead mode: I,II,III,AVR,AVL,AVF,V |
| Gain:×0.25,×0.5,×1,×2 |
| Heart rate:15-300BPM(Adult) 15-350BPM(Neonatal) |
| ST measurement Range:-2.0-+2.0mv Accuracy:±10% |
| Pacemaker: Yes |
| Sweep Speed:12.5mm/s,25mm/s,50mm/s |
| Bandwidth: Diagnostic: 0.05～130Hz Monitor: 0.5 ~40Hz Surgery: 1~20Hz |
| Measure range: 0-100% |
| Resolution: 1% |
| Accuracy: 2%(70-100%) |
| Pulse Rate:20-250 BPM |
| Resolution: 1BPM |
| Accuracy:±3BPM |
| Work Mode:Manual,Automatic,Continuous |
| Unit:mmHg,kPa |
|
Measure range: Adult: SYS 40~280mmHg; DIA 10~225mmHg; MEAN 20~240mmHg |
| Resolution:1mmHg |
| Accuracy:±5mmHg |
| Measure range:0-150 BrPM |
| Resolution:1 BrPM |
| Accuracy: ±2% |
| Measure range:0-50 ℃ |
| Resolution:0.1 ℃ |
| Accuracy: ±0.1℃ |
